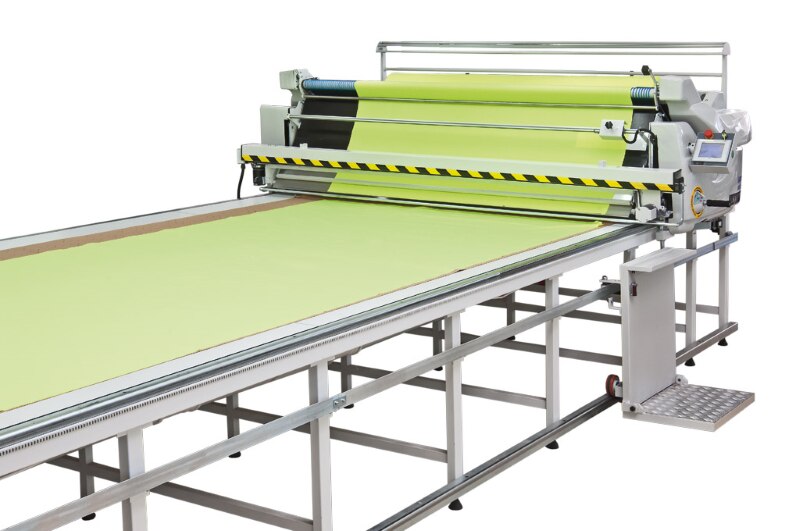

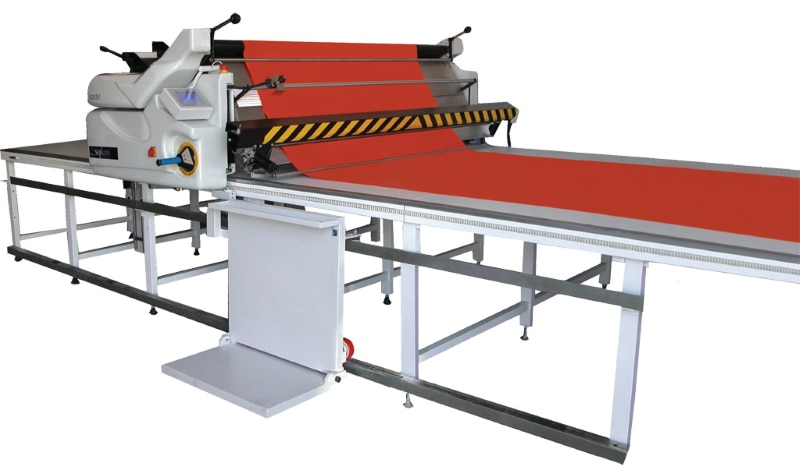

Fully Automatic Fabric Spreading Machine ( MN1 MINI MASTER )

General Properties

SPREADS ALL KINDS OF FABRIC ROLLS WEIGHTING UP 120 KGS(264 LBS)

WITHOUT TENSION AND EDGES ARE ALIGNED PERFECTLY

Spreads woven fabrics in roll or flat-folded form (Full Lycra)

Spreads knit fabrics in roll or flat-folded form (Full Lycra)

Spreads tubular knit fabric in roll or flat-folded form (Full Lycra)

LCD TOUCH SCREEN DISPLAY WITH PLC UNIT

Simplified graphical display that is easy to learn and easy to train new operators

Stores 50 different fabric set up files for quick retrieval to accelerate future spreading jobs

Available in Turkish, English and any other foreign languages if requested

MULTI FUNCTION THROTTLE

ENABLES THE OPERATOR TO CONTROL

Threading/Rewinding of fabric

Start/Stop of spreading with one hand

OPERATOR PLATFORM

Allows operator to ride alongside the table

CRADLE FEED SYSTEM PROVIDES

Tension-free spreading even difficult fabrics

Eliminates use of a fabric roll bar

SYSTEM FEATURES

Electronic edge control responsive to variable speed

Automatic stop with safety sensors in case of emergency

Multi length spreading modes

Automatic pre-centering of material beginning during threading

Variable speed control at forward/backward turns «Save Time»

No cloth stop function

Ply counter

Programmable lay length and end allowance settings

ATTACHMENTS

Zigzag equipment

Rear catcher

Movable front catcher

Fabric roll opener

Flat-fold attachment

Automatic cutting device

Tubular unit

Special bar for reverse wound material
